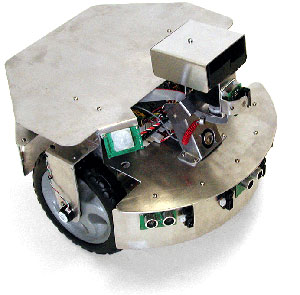

X80 with integrated Opti-Logic RS100 Laser Rangefinder.
The Opti Logic RS100 Industrial Rangefinder unit is laser range finder that outputs measured distance readings to an RS-232 compatible port. Range finder data then can be output from Opti-Logic RS 100 Industrial laser range-finder as either raw (relative) or calibrated (actual) distances. This information can then be used in several applications. OptiLogic RS-100 Industrial Laser Rangefinder is a great pre-made laser rangefinder to fit your needs and Opti Logic RS100 Industrial Rangefinder is also part of family of Opti-Logic Industrial laser range finders that are made to fit almost any project you will deal with.
Included Main Modules:
Specifications for Opti-Logic RS100 Industrial Laser Range-Finder:
Communications:
Characters
Protocol
RS232 - 8, N, 1 (no handshaking)
Baud Rate
19200
Connections
Transmit, Receive, and Ground Wires
Data Raw Counts
~200Hz
Data Calibrated Range
~10Hz
Data Rate:
~200Hz raw counts for un-calibrated operation;
~ 10Hz for calibrated operation
Calibrated Range Units:
Feet, Meters, Yards
Laser
Class I (eye-safe), 905nm +/- 10nm
Power:
7-9VDC conditioned required Current draw @ full power (~ 1.8W)
Range
100 Yards (Minimum 4 Yards)
Laser Wavelength
905nm +/- 10nm
Laser Divergence:
Vertical Axis -- 3.5mrad half-angle divergence;
Horizontal Axis -- 1mrad half-angle divergence;
(Approximate Beam "footprint" at 100m is 35cm x 5cm)
Accuracy:
+/- 1m on 1x1m2 diffuse target with 50% reflectivity
