[ P/N: Sputnik2A]

  Sputnik2A

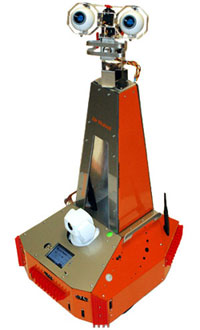

Sputnik2A - Wireless (WiFi 802.11g) Robot Core Development Platform with High Resolution Pan-Tilt-Zoom Camera, Color Video Display, Animated Head System and Software SDK
   - [P/N: Sputnik2A]

* This item is discontinued

****** Discontinued******

Replacement parts: Sputnik3


This ready to use mobile robot platform is designed for researchers developing advanced robot applications such as remote monitoring, telepresence and autonomous navigation/patrol.

Mechanics
The Sputnik2A is the result of extensive efforts to develop a robot that would be fast and strong, while itself remaining lightweight and nimble. The wheel-based platformís two 12V DC motors with Integrated 800 Count per Cycle Optical Encoder each supply 40kg.cm of torque to the i90ís 18 cm (7 in.) wheels, yielding a top speed in excess of 1 m/s (3.3 ft/s). Weighing only 8 kg (18 lb.), the system is light, but it can carry an additional payload of 15 kg (33 lb.). (Optional 40 Kg)

Sensors
Sputnik2A offers full WiFi (802.11G) wireless, multimedia, sensing and motion capabilities and comes with a wide range of sensor, camera, and audio modules, sufficient to serve in any variety of applications. The Sputnik2A offers broad expandability as well for projects that may require additional sensors, even specialized modules. Powered by separate RC servo motors, the integrated camera head can pan and tilt independently.

Architecture
The Sputnik2A ís underlying technology evolved from Dr Robotís Distributed Computation Robotic Architecture, originally developed for Dr Robotís Humanoid (HR) Robot. Using this approach, high-level control of the robot is maintained by a remote or local PC/server communicating by a secure wireless link. Low-level functionality is managed by an onboard digital signal processor (DSP) while computationally intensive operations are performed offboard. The result is a robot thatís lighter, draws less power, runs longer and is dramatically less expensive than a fully bundled or self-contained system. Moreover, since primary processing resides in a server, any hardware upgrades to the central unit are shared by all the robots it controls.

With its integrated high bandwidth (54Mbps) WiFi 802.11G wireless module, the system can upload all sensor data to a PC or server at rates in excess of 10Hz. Similarly, streaming audio and video (up to 30 fps) either for direct monitoring or for processing by high-level AI schemes is a snap. Commands and instructions sent to the Sputnik2A via the same wireless link also pass at rates exceeding 10Hz, providing real-time control and access.

The Sputnik2A includes all WiRobot development software components (for MS Windows 2000 and up), enabling easy access to all data and information in a standard Microsoft Windows programming environment (e.g., MS VB and VC++). Under the approach of using a separate PC for high-level control, there are no longer onboard restrictions on a mobile systemís processing power, memory and storage. For users of non-Windows operating systems (e.g., Linux), Dr Robot will provide the raw communication protocol for direct integration with any other system/device.

With the Sputnik2A system, researchers can develop a specialized intelligent robotic assistant, security robot or simply use it as a platform for a variety of projects built around applications such as human-machine interaction, mobile system navigation, robot behavior, image processing, object recognition, voice recognition, teleoperation, remote sensing, map building and localization etc.

The Sputnik2A system is fully integrated and each robot is fully assembled and tested prior to shipping so that it arrives ready for use.
Mechanical and Control Highlights:

  • 40kg.cm 12V DC motor with integrated 800 count per cycle optical encoder
  • Animated Head System, It comes with 5 servos.
  • 7 inch driving wheel
  • Max speed of 1 m/sec
  • Dimensions:
      40.0 cm (Width: 16 in.) x 45.0 cm (Length: 18 in.) x 89.0 cm (Height: 35 in.)
      (* the robot's height can be custom, please contact info@drrobot.com for detail.)
  • Weight: 8 kg (18 lb.)
  • Large top mounting deck for additional devices such as a notebook computer
  • Additional carrying payload:
      15 kg
      40 Kg (Optional, please contact info@drrobot.com for detail)


Electronic System Highlights:
  • Fully integrated WiFi (802.11G) system with dual serial communication channels, supporting both UDP and TCP/IP protocol.
  • Max 704x480 pixels, max 30fps, High Resolution Camera with 2-way audio
  • 320x240 Color Programmable Touch LCD
  • Battery:
      2 x 3800mAh with over 3 hours for nominal operation.
      2 x 9000mAh with over 6 hours for nominal operation (Optional, please contact info@drrobot.com for detail)
  • Power management and recharging system
  • Collision detection sensors include 3 sonar range sensors and 7 IR range sensors
  • 2 Pyroelectric Human Motion Sensors
  • Joystick Control included
  • Additional sensors such as supplementary sonar sensors, temperature sensors, acceleration/tilting sensor, 3D scanning laser rangefinder, RFID or customized sensors can be added.


OS Independent Programming Support
OS (operating system) independent robot control and data communication protocols are provided for developing customized robot program for any operating system or devices that supporting TCP/IP communication. High level ActiveX controls are also provided for fast development under Windows 2000 or XP.
